There is two ways to interpolate the rotation of a transform :
UBTween.Rotation will take the shorstest path to the target Rotation. It’s not possible to make roation of more than 180d.UBTween.ExactRotation will be able to make rotation of more than 180d.
Supported Objects:
| Target | Value changed (Ref Global) | Value changed (Ref Local) |
|---|---|---|
Transform | Transform.rotation | Transform.localRotation |
RectTransform | RectTransform.rotation | RectTransform.localRotation |
Rotation
Use Current Rotation As Start :
UBTween.Rotation(
transform, // Target Object
Quaternion.AngleAxis(90f, Vector3.forward), // End Rotation
1f); // Duration
Using float will use UBTween.RotationAxis by default, (you can change the value to suit your needs):
UBTween.Rotation(
transform, // Target Object
90f, // Target Angle
1f); // Duration

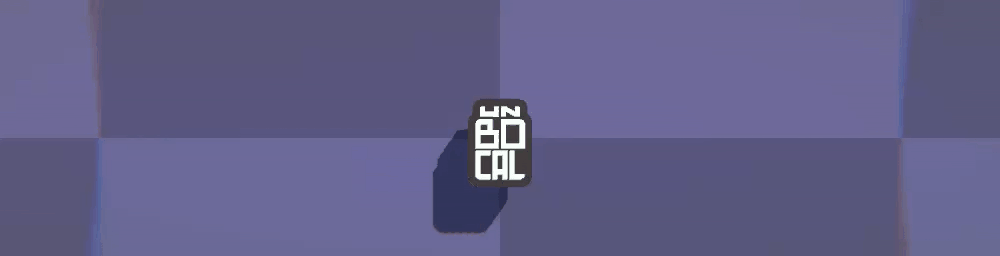

![[Rotation_0]](.\Assets\Rotation_0.gif)
Specify Start Rotation :
UBTween.Rotation(
transform, // Target Object
Quaternion.AngleAxis(90f, Vector3.forward), // Start Rotation
Quaternion.AngleAxis(-90f, Vector3.forward), // End Rotation
1f); // Duration
Using float will use UBTween.RotationAxis by default, (you can change the value to suit your needs):
UBTween.Rotation(
transform, // Target Object
90f, // Start Angle
-90f, // End Angle
1f); // Duration
ExactRotation :
UBTween.ExactRotation(
transform, // Target Object
transform.rotation, // Start Rotation
360f, // Angle
Vector3.up, // Axis
1f); // Duration
UBTween.ExactRotation(
transform, // Target Object
360f, // Angle
Vector3.up, // Axis
1f); // Duration
Referencial :
It’s possible to whether translate the local rotation or the global position by using the Ref Enum.
| Target | Value changed (Ref Global) | Value changed (Ref Local) |
|---|---|---|
Transform | Transform.position | Transform.localPosition |
RectTransform | RectTransform.position | RectTransform.localPosition |
From Current
UBTween.Position(
transform, // Target Object
new Vector3(0f, 1f, 0f), // End Position
1f, // Duration
Ref.Global); // Ref
From Specific Start
UBTween.Position(
transform, // Target Object
new Vector3(-1f, .5f, 0f), // Start Position
new Vector3(1f, .5f, 0f), // End Position
1f, // Duration
Ref.Local); // Referencial

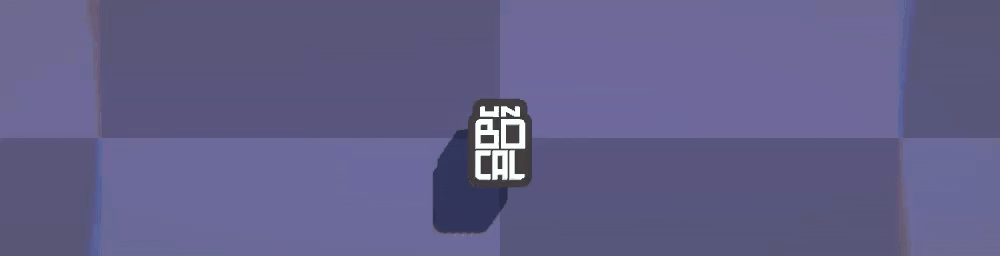

Gif Code :
UBTween.Sequence sequence = new UBTween.Sequence()
{
// 0f To 180f
UBTween.ExactRotation(transform, 180f, .5f)
.SetEase(EaseType.InBack),
UBTween.ExactRotation(transform, 180f, 360f, 1f)
.SetEase(EaseType.OutElastic)
.SetDelay(.5f),
}.Start().SetLoop();
